Heavy duty scrap channel steel shearing shear China

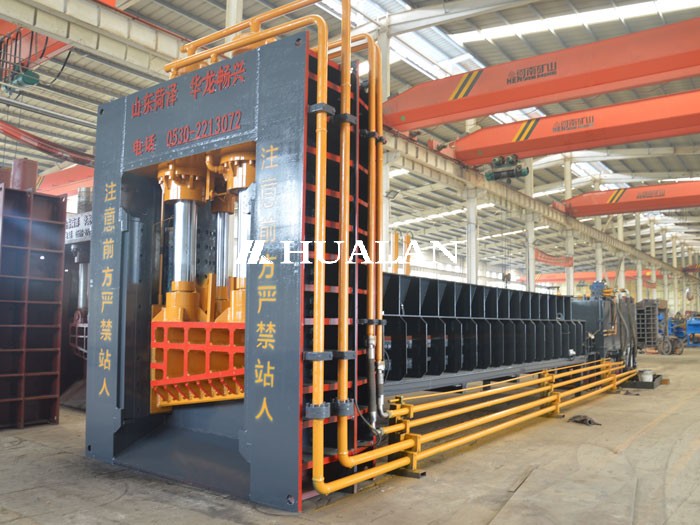

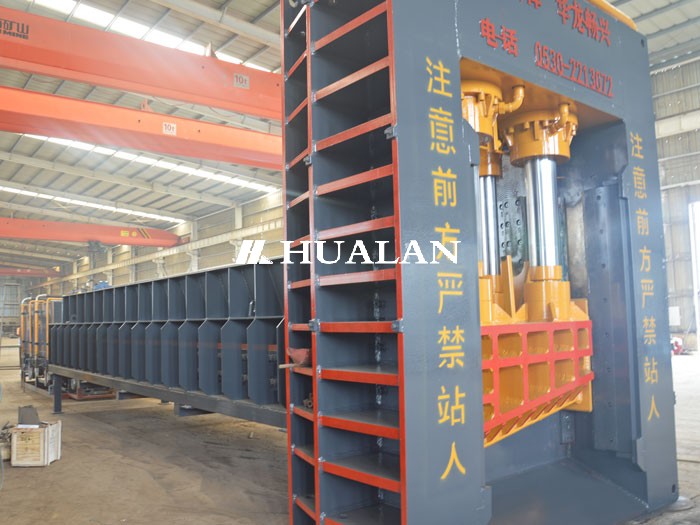

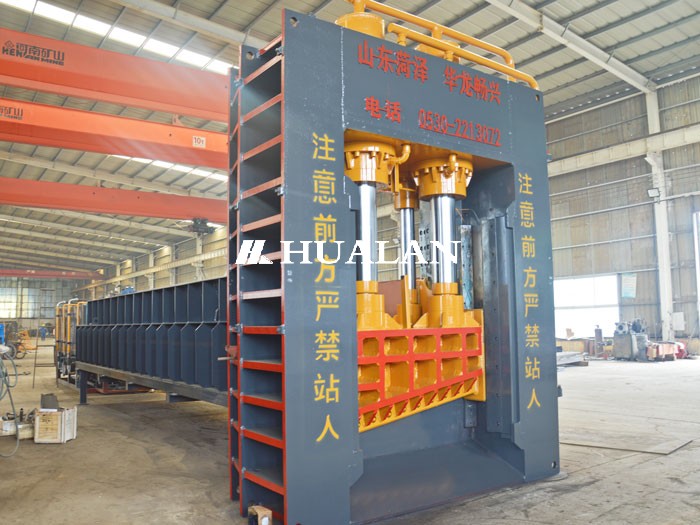

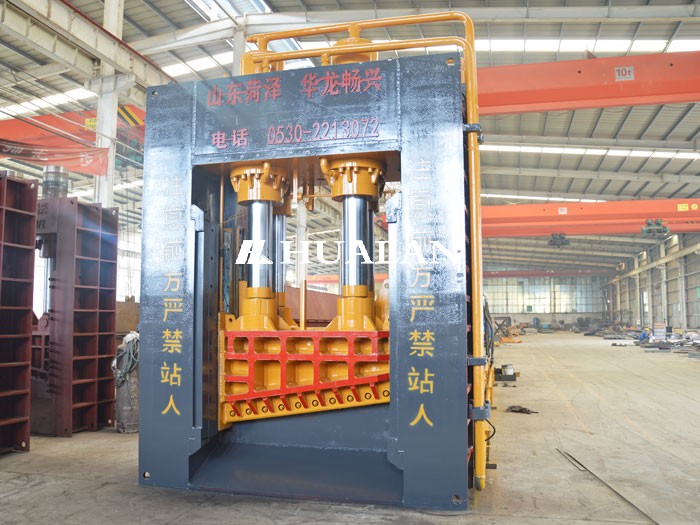

Heavy-duty scrap metal gantry shear can handle various light and heavy scrap metal materials, including various light and thin scrap steel materials, I-beams, channel steel, scrap rails, etc. Shears coldly shear these scrap metal materials into required specifications and sizes, saving transportation costs and improving smelting efficiency. Shears are suitable for steel plants, metal recycling and processing industries, non-ferrous metals and ferrous smelting industries, etc., and have a wide range of uses.

Channel steel shearing machine video

Customized services for shear:

1. Providing blade and material box options with different specifications.
2. Customizing shear pressure according to special material characteristics.
3. Customizing machines to suit specific working environments and conditions.
4. Providing long-term technical support and maintenance services.

Core Capabilities

1. Shearing Thickness:
A single cold shearing cycle can cut round steel with a maximum diameter of ≤180 mm, mild steel plate with a thickness of ≤80 mm, or mixed scrap.
2. Blade Width:
Mainstream models offer 1800 mm, enabling a large single-cut length and reducing reloading times.
3. Bin Capacity:
An extra-long 6-7 m bin can hold 8-10 tons of lightweight material at a time, increasing continuous operation time.
4. Cycle Efficiency:
Fully loaded, the machine can cut 3-5 times/minute, achieving an hourly output of 15-20 tons.
5. System Pressure:
22-25 MPa. Dual master cylinders are synchronously driven, providing powerful power and energy efficiency.

Parameter of the Channel steel shearing machine

Parameter of the Channel steel shearing machine
