Model series : Q91 300-2000
Pressure : 300 – 2000 ton
Customized : support
Orginal: China
Application: shear large pieces of light metal structures made of scrap steel billets, square steel, I-beams, channel steel, steel pipes, and steel materials into scraps suitable for furnace materials.

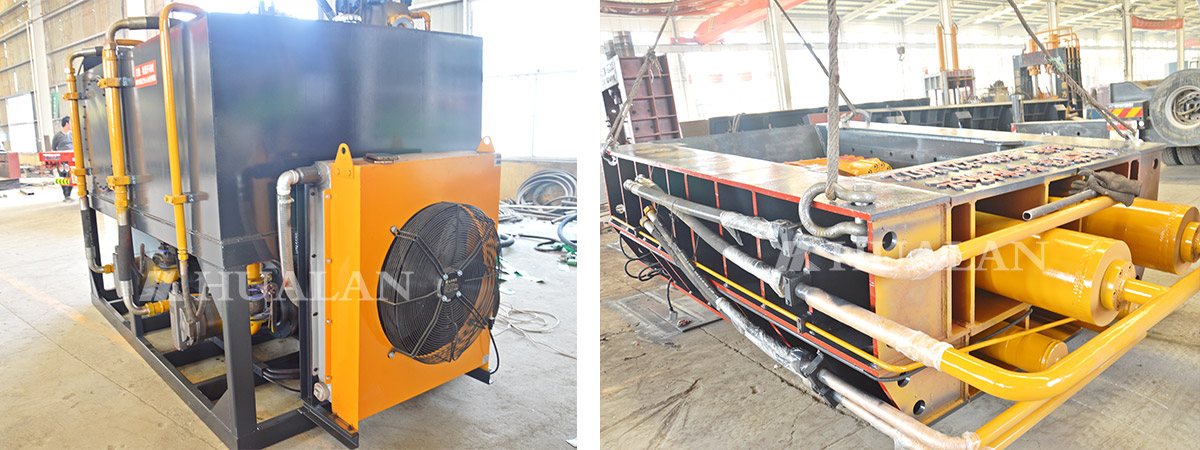

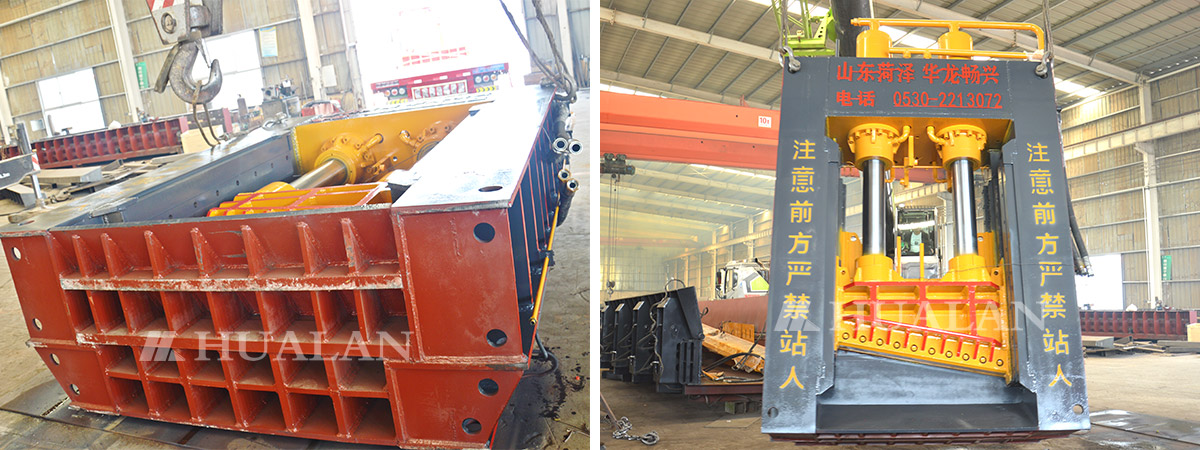

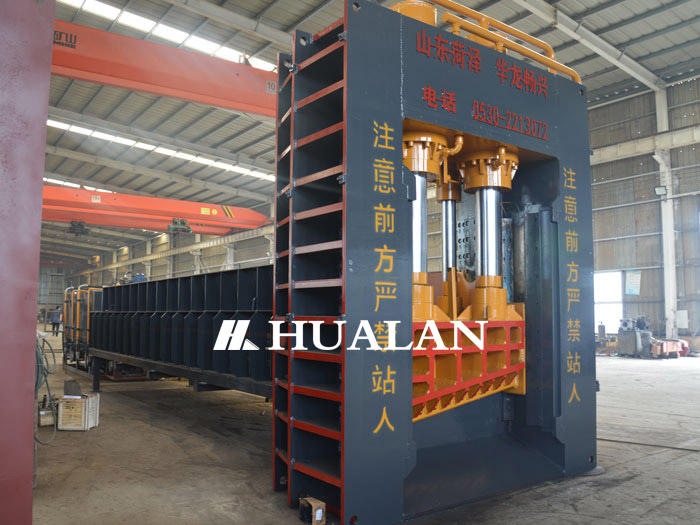

Q91 Hydraulic Baling Shear China introduction:
Q91 series Hydraulic Baling Shear also called Guillotine cutting machine, it combine baling & shearing function, can shear various thin steel materials and heavy steel plates, including steel bars, steel pipes, scrap copper, aluminum alloys, etc.
It is usually suitable for steel plants, metal recycling and processing industries, non-ferrous metals and ferrous smelting industries, etc

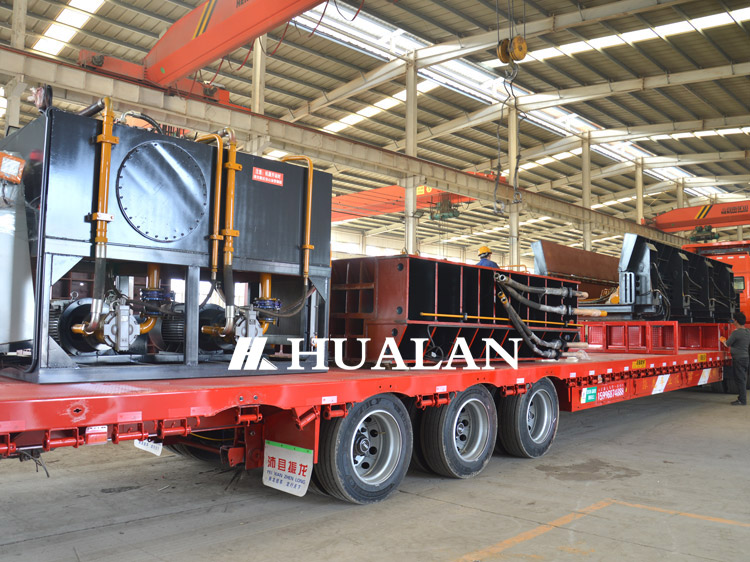

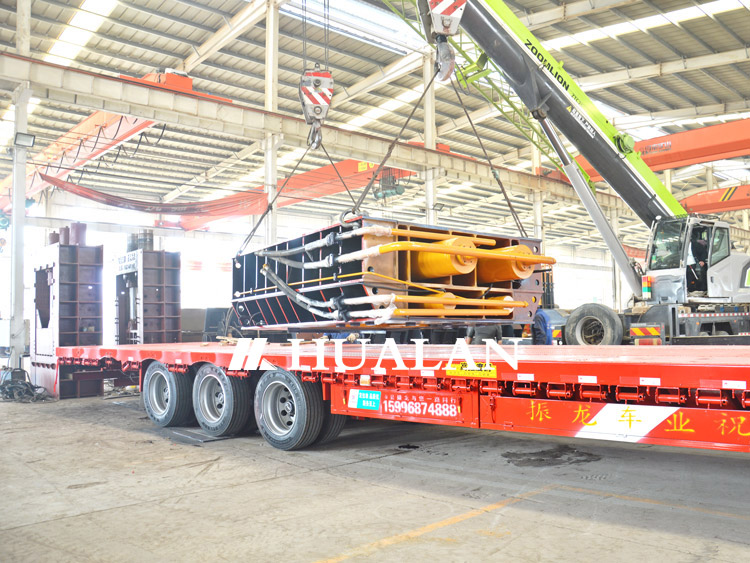

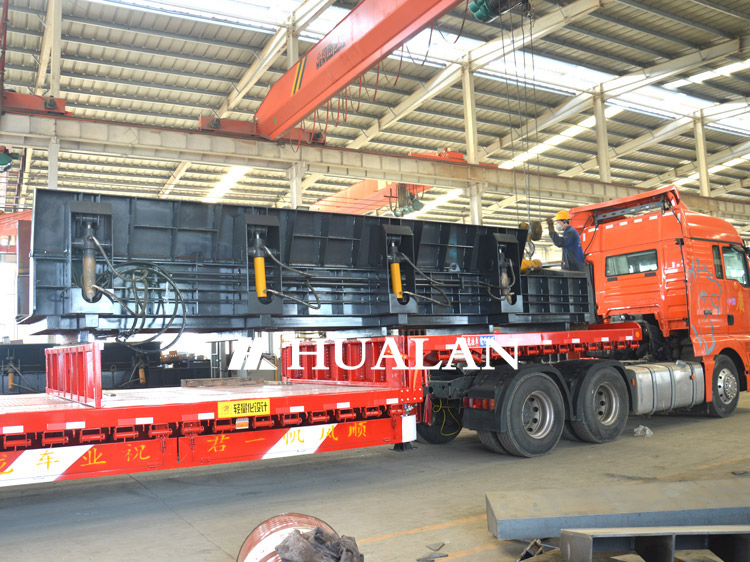

Q91 series Hydraulic Baling Shear ready to ship
Q91 series Hydraulic Baling Shear
| Item | Model | Blade width mm | Power KW | min shear open | Feeding dimension mm | Pushing model |
| 1 | Q91-300L | 1300 | 22KW*2 | ≤500 mm | 6000*1250*550(800) | Oil cylinder/chain plate optional |
| 2 | Q91-400L | 1400 | 37KW*2 | ≤550 | 6000*1350*600(900) | |
| 3 | Q91-500L-A | 1500 | 45KW*2 | ≤550 | 6000*1450*650(950) | |
| 4 | Q91-500L-B | 1600 | 45KW*2 | ≤600 | 6000*1550*650(950) | |
| 5 | Q91-630L-A | 1600 | 45KW*2 | ≤550 | 6000*1550*750(1000) | |
| 6 | Q91-630L-B | 1600 | 45KW*2 | ≤600 | 6000*1550*750(1000) | |
| 7 | Q91-800L-A | 1800 | 45KW*3 | ≤650 | 8000*1750*800(1100) | |
| 8 | Q91-800L-B | 1800 | 45KW*4 | ≤650 | 8000*1750*800(1100) | |
| 9 | Q91-1000L-A | 2000 | 45KW*5 | ≤750 | 8000*1950*900(1200) | |
| 10 | Q91-1000L-B | 2000 | 45KW*6 | ≤750 | 8000*1950*900(1200) | |
| 11 | Q91-1250L-A | 2000 | 45KW*6 | ≤750 | 8000*1950*900(1200) | |
| 12 | Q91-1250L-B | 2000 | 45KW*7 | ≤750 | 8000*1950*900(1200) | |
| 13 | Q91-1500L-A | 2000 | 45KW*7 | ≤750 | 8000*1950*1000(1300) | |
| 14 | Q91-1500L-B | 2000 | 45KW*8 | ≤750 | 8000*1950*1000(1300) | |
| 15 | Q91-2000L-A | 2200 | 90KW*6 | ≤750 | 8000*2150*1100(1400) | |
| 16 | Q91-2000L-B | 2200 | 90KW*6 | ≤750 | 8000*2150*1100(1400) |
| Item | Model | Blade width mm | Power KW | min shear open | Feeding dimension mm | Pushing model |
| 1 | Q91-300L | 1300 | 22KW*2 | ≤500 mm | 6000*1250*550(800) | Oil cylinder/chain plate optional |
| 2 | Q91-400L | 1400 | 37KW*2 | ≤550 | 6000*1350*600(900) | |
| 3 | Q91-500L-A | 1500 | 45KW*2 | ≤550 | 6000*1450*650(950) | |
| 4 | Q91-500L-B | 1600 | 45KW*2 | ≤600 | 6000*1550*650(950) | |
| 5 | Q91-630L-A | 1600 | 45KW*2 | ≤550 | 6000*1550*750(1000) | |
| 6 | Q91-630L-B | 1600 | 45KW*2 | ≤600 | 6000*1550*750(1000) | |
| 7 | Q91-800L-A | 1800 | 45KW*3 | ≤650 | 8000*1750*800(1100) | |
| 8 | Q91-800L-B | 1800 | 45KW*4 | ≤650 | 8000*1750*800(1100) | |
| 9 | Q91-1000L-A | 2000 | 45KW*5 | ≤750 | 8000*1950*900(1200) | |
| 10 | Q91-1000L-B | 2000 | 45KW*6 | ≤750 | 8000*1950*900(1200) | |
| 11 | Q91-1250L-A | 2000 | 45KW*6 | ≤750 | 8000*1950*900(1200) | |
| 12 | Q91-1250L-B | 2000 | 45KW*7 | ≤750 | 8000*1950*900(1200) | |
| 13 | Q91-1500L-A | 2000 | 45KW*7 | ≤750 | 8000*1950*1000(1300) | |
| 14 | Q91-1500L-B | 2000 | 45KW*8 | ≤750 | 8000*1950*1000(1300) | |
| 15 | Q91-2000L-A | 2200 | 90KW*6 | ≤750 | 8000*2150*1100(1400) | |
| 16 | Q91-2000L-B | 2200 | 90KW*6 | ≤750 | 8000*2150*1100(1400) |
