Condition： new , for sale
Model：250-3000ton
Orginal: China
Apply：Metal sheets such as steel plates, aluminum plates, copper plates,Scrap steel, section steel, steel bars, metal blocks, angle steel, channel steel, round steel etc

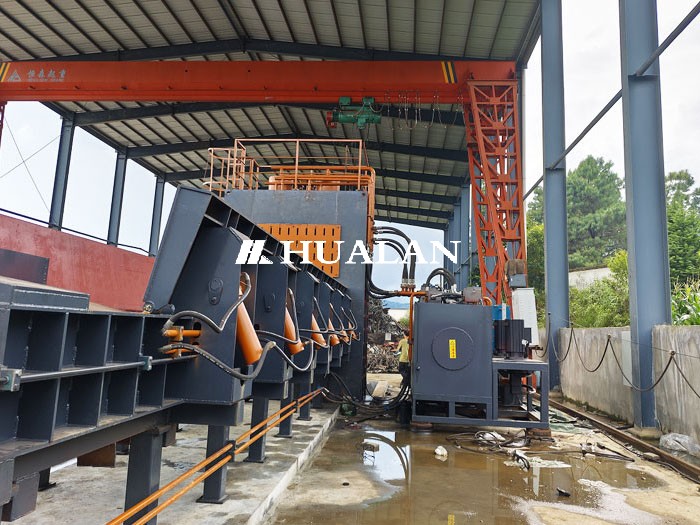

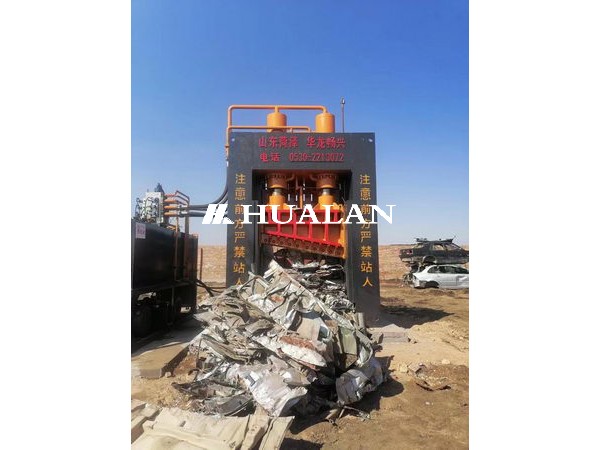

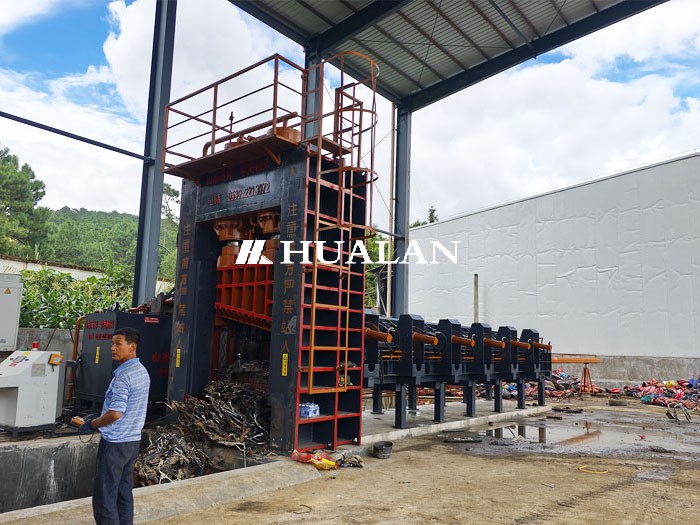

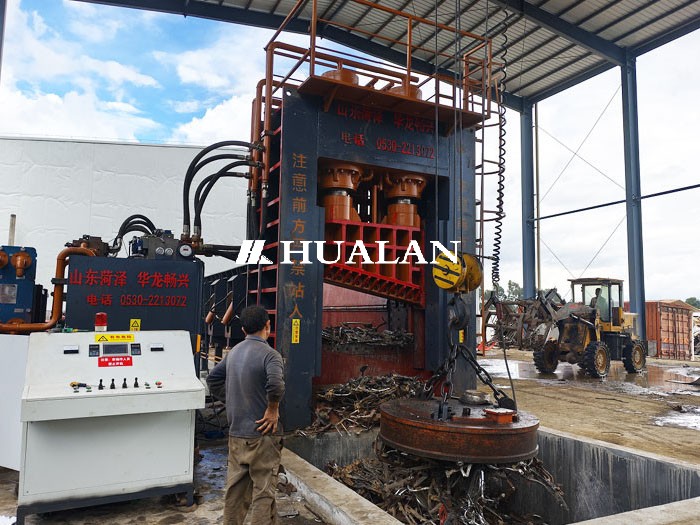

Hualan Hydraulic gantry shear (also known as gantry hydraulic shear) is a shearing device driven by a hydraulic system, mainly used for the processing and handling of metal materials.
Hualan Hydraulic gantry shear provides strong shear force (tonnage level) through a hydraulic system, combined with a slanted blade design, and can handle materials such as thick steel plates and steel bars, with the characteristics of safe operation and high efficiency.
Scrap metal gantry shear video
1.Application
1.1 Metal sheet shearing
Metal sheets such as steel plates, aluminum plates, copper plates, etc
1.2 Scrap metal recycling
Scrap steel, section steel, steel bars, metal pressure blocks
1.3 Industrial processing
For various metal structures (such as angle steel, channel steel, round steel)
1.4 Rescue application
Partial hydraulic gantry shears are designed for rescue scenarios and can quickly cut through metal obstacles such as anti-theft doors and windows, steel bars, and guardrails
2.Features
2.1 Efficient processing capability:
Hydraulic gantry shears can quickly and efficiently cut various types of scrap metals (such as scrap steel, stainless steel, etc.)
2.2 High precision and stability:
Adopting a tilted blade design and pressing mechanism, it can maintain the flatness of the metal plate and ensure accurate cutting size.
2.3 Energy saving:
Advanced hydraulic servo drive technology enables equipment to save energy and electricity, with some models saving over 25%.
2.4 Easy to operate and safe:
supports multiple control modes such as manual, automatic, and remote control, with flexible and simple operation, reducing the requirement for operator skills.
2.5 Automation and Intelligence:
Automated feeding, cutting, and discharging reduce manual intervention and lower labor intensity.
2.6 Durable and sturdy structure:
Equipped with heavy-duty design and large tonnage hydraulic drive, the equipment can withstand high-intensity work
High cost-effectiveness: Long lifespan, low failure rate, long-term use can save maintenance costs.
| Item | Model | Blade width mm | Power KW | min shear open | Feeding dimension mm | Pushing model |
| 1 | HL-300L | 1300 | 22KW*2 | ≤500 mm | 6000*1250*550(800) | Oil cylinder/chain plate optional |
| 2 | HL-400L | 1400 | 37KW*2 | ≤550 | 6000*1350*600(900) | |
| 3 | HL-500L-A | 1500 | 45KW*2 | ≤550 | 6000*1450*650(950) | |
| 4 | HL-500L-B | 1600 | 45KW*2 | ≤600 | 6000*1550*650(950) | |
| 5 | HL-630L-A | 1600 | 45KW*2 | ≤550 | 6000*1550*750(1000) | |
| 6 | HL-630L-B | 1600 | 45KW*2 | ≤600 | 6000*1550*750(1000) | |
| 7 | HL-800L-A | 1800 | 45KW*3 | ≤650 | 8000*1750*800(1100) | |
| 8 | HL-800L-B | 1800 | 45KW*4 | ≤650 | 8000*1750*800(1100) | |
| 9 | HL-1000L-A | 2000 | 45KW*5 | ≤750 | 8000*1950*900(1200) | |
| 10 | HL-1000L-B | 2000 | 45KW*6 | ≤750 | 8000*1950*900(1200) | |
| 11 | HL-1250L-A | 2000 | 45KW*6 | ≤750 | 8000*1950*900(1200) | |
| 12 | HL-1250L-B | 2000 | 45KW*7 | ≤750 | 8000*1950*900(1200) | |
| 13 | HL-1500L-A | 2000 | 45KW*7 | ≤750 | 8000*1950*1000(1300) | |
| 14 | HL-1500L-B | 2000 | 45KW*8 | ≤750 | 8000*1950*1000(1300) | |
| 15 | HL-2000L-A | 2200 | 90KW*6 | ≤750 | 8000*2150*1100(1400) | |
| 16 | HL-2000L-B | 2200 | 90KW*6 | ≤750 | 8000*2150*1100(1400) |
