Orginal：China , Shandong
Condition：New , for sale
Pressuse: 50-2000ton
Used for：Various metal scraps, steel shavings, scrap steel, scrap iron, scrap copper, scrap aluminum, aluminum shavings, dismantled car shells, waste oil drums and other metal raw materials can be extruded into qualified furnace materials of various shapes such as rectangular prisms and cylindrical shapes

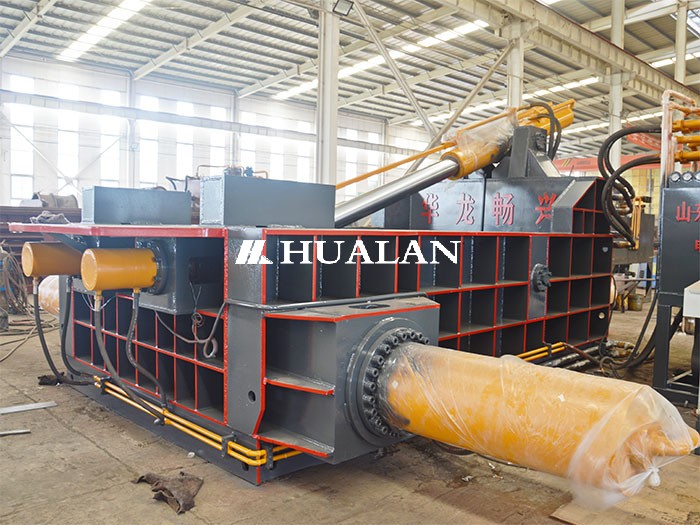

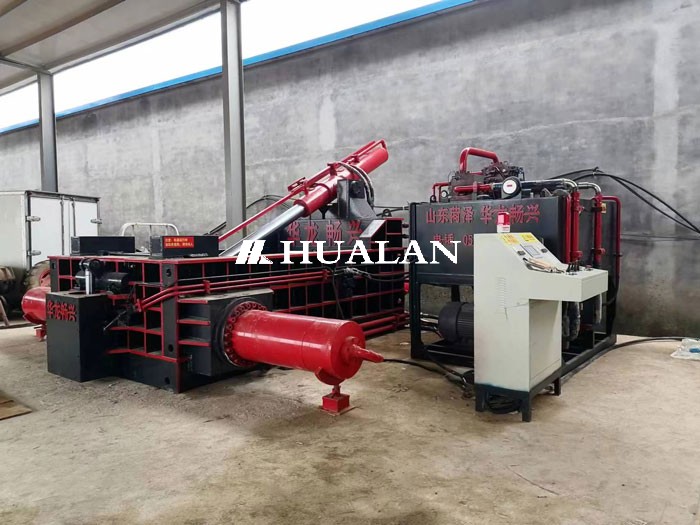

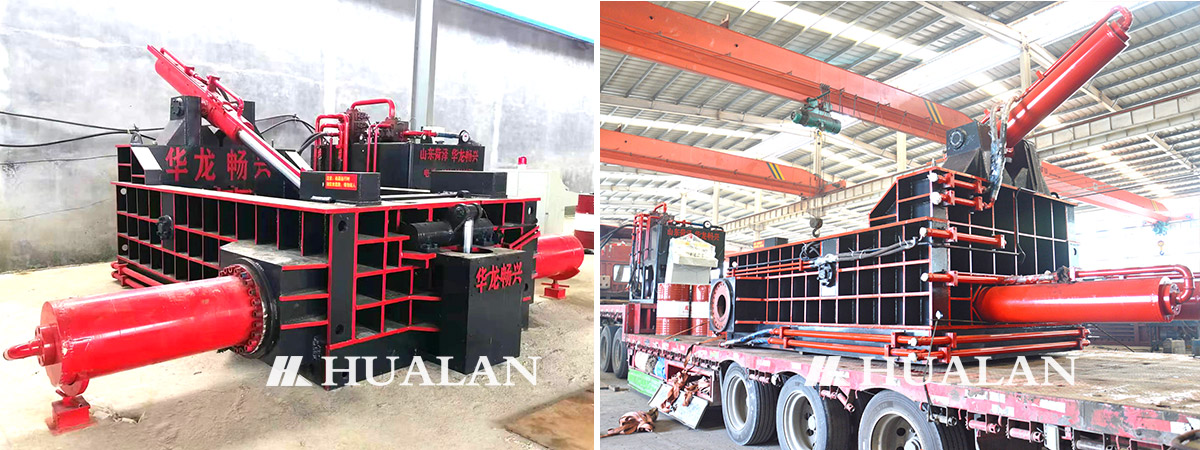

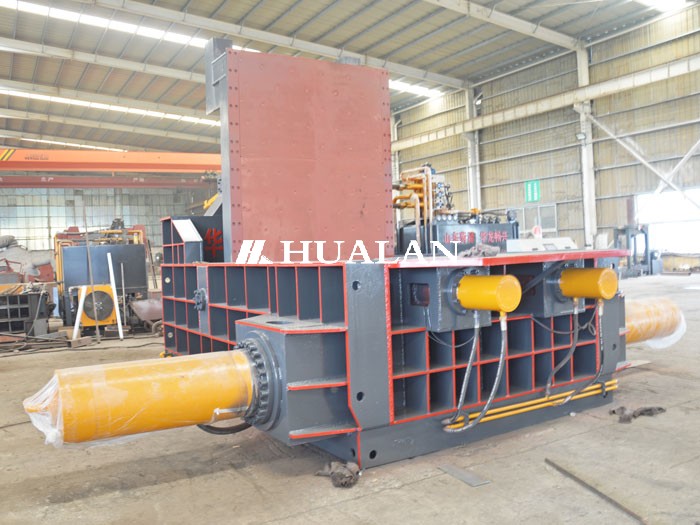

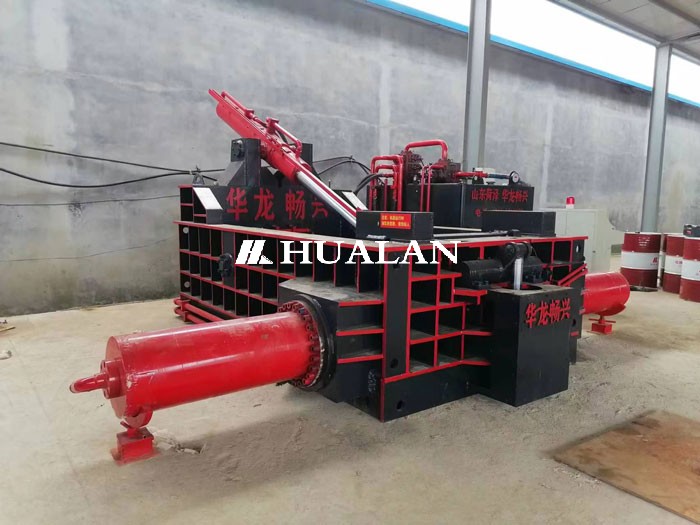

The metal baler also called metal baling machine, metal briquette machine ,metal packer etc. it adopts the hydraulic device drive device to pack and extrude various waste metal materials into cuboid, octagon, cylinder and other shapes, which can reduce both the transportation cost and the smelting cost of the metal smelter.
Features
1. All models are hydraulically driven.
2.The installation does not need the anchor screws, and the diesel engine can be used as the power in the place where there is no power supply.
3.There are two ways to deliver the package: turning the package over and pushing the package.
4.Manual or automatic control operation can be selected.
5.There are multiple grades of extrusion force from 63 tons to 500 tons, and the production efficiency is from 0.5 tons/hour to 30 tons/hour.
6.The size of the feeding box and the shape and size of the package can be customized according to the user’s raw material specifications.
Application
It is uesd for pressing Pull cans, paint buckets, iron cans, scrap iron, scrap steel, iron sheets, bicycles, color steel tiles, light and thin materials, pig iron, scrap aluminum, scrap copper, scrap cars and other scrap metals.
It is widely used in steelmaking plants, recycling and processing industries, nonferrous and ferrous metal smelting industries, etc.
| Item | Model | Box inner dimension mm | Block dimension mm | Motor KW | Capacity tph |
| 1 | HL-200Y | 2000*1400*800 | 400*400 | 30KW*2 | 3-6 |
| 2 | HL-250Y | 2500*2000*1000 | 500*500 | 37KW*2 | 4-7 |
| 3 | HL-315Y-A | 3000*2500*1200 | 600*600 | 45KW*2 | 6-8 |
| 4 | HL-315Y-B | 3500*3000*1200 | 700*700 | 45KW*2 | 7-9 |
| 5 | HL-400Y-A | 3500*3000*1200 | 700*700 | 37KW*3 | 9-12 |
| 6 | HL-400Y-B | 4000*3000*1200 | 700*700 | 45KW*3 | 10-14 |
| 7 | HL-500Y-A | 3500*3000*1300 | 700*700 | 45KW*3 | 10-15 |
| 8 | HL-500Y-B | 4000*3000*1300 | 700*700 | 45KW*3 | 12-17 |
| 9 | HL-630Y-A | 3500*3000*1300 | 700*700 | 45KW*4 | 13-18 |
| 10 | HL-630Y-B | 4000*3000*1300 | 700*700 | 45KW*4 | 14-19 |
| 11 | HL-800Y-A | 3500*3000*1300 | 700*700 | 45KW*5 | 14-19 |
| 12 | HL-800Y-B | 4000*3000*1300 | 700*700 | 45KW*5 | 15-20 |
| 13 | HL-1000Y-A | 3500*3000*1300 | 700*700 | 45KW*6 | 15-20 |
| 14 | HL-1000Y-B | 4000*3000*1300 | 700*700 | 45KW*6 | 16-22 |
| 15 | HL-1250Y-A | 3500*3000*1300 | 700*700 | 45KW*7 | 17-22 |
| 16 | HL-1250Y-B | 4000*3000*1300 | 700*700 | 45KW*7 | 18-25 |
| 17 | HL-1500Y-A | 3500*3000*1300 | 700*700 | 45KW*8 | 18-25 |
| 18 | HL-1500Y-B | 4000*3000*1300 | 700*700 | 45KW*8 | 25-30 |
| Item | Model | Motor KW | Inlet height mm | Box Dimension(L W H) |
| 1 | HLL-60 | 11KW*1 | 500 | 1150*850*850 |
| 2 | HLL-80 | 15KW*1 | 550 | 1150*850*900 |
| 3 | HLL-120-A | 18.5KW*1 | 550 | 1150*850*900 |
| 4 | HLL-120-A | 18.5KW*1 | 550 | 1300*900*900 |
| 5 | HLL-160 | 18.5KW*1 | 600 | 1600*1100*1000 |
| 6 | HLL-200 | 22KW*1 | 1000 | 2000*1100*1000 |
| 7 | HLL-315 | 37KW*1 | 1000 | 2300*1100*1000 |
| 8 | HLL-400 | 45KW*1 | 1300 | 2300*1100*1000 |
| Item | Model | Box inner dimension mm | Block dimension mm | Motor KW | Capacity tph |
| 1 | HL-200Y | 2000*1400*800 | 400*400 | 30KW*2 | 3-6 |
| 2 | HL-250Y | 2500*2000*1000 | 500*500 | 37KW*2 | 4-7 |
| 3 | HL-315Y-A | 3000*2500*1200 | 600*600 | 45KW*2 | 6-8 |
| 4 | HL-315Y-B | 3500*3000*1200 | 700*700 | 45KW*2 | 7-9 |
| 5 | HL-400Y-A | 3500*3000*1200 | 700*700 | 37KW*3 | 9-12 |
| 6 | HL-400Y-B | 4000*3000*1200 | 700*700 | 45KW*3 | 10-14 |
| 7 | HL-500Y-A | 3500*3000*1300 | 700*700 | 45KW*3 | 10-15 |
| 8 | HL-500Y-B | 4000*3000*1300 | 700*700 | 45KW*3 | 12-17 |
| 9 | HL-630Y-A | 3500*3000*1300 | 700*700 | 45KW*4 | 13-18 |
| 10 | HL-630Y-B | 4000*3000*1300 | 700*700 | 45KW*4 | 14-19 |
| 11 | HL-800Y-A | 3500*3000*1300 | 700*700 | 45KW*5 | 14-19 |
| 12 | HL-800Y-B | 4000*3000*1300 | 700*700 | 45KW*5 | 15-20 |
| 13 | HL-1000Y-A | 3500*3000*1300 | 700*700 | 45KW*6 | 15-20 |
| 14 | HL-1000Y-B | 4000*3000*1300 | 700*700 | 45KW*6 | 16-22 |
| 15 | HL-1250Y-A | 3500*3000*1300 | 700*700 | 45KW*7 | 17-22 |
| 16 | HL-1250Y-B | 4000*3000*1300 | 700*700 | 45KW*7 | 18-25 |
| 17 | HL-1500Y-A | 3500*3000*1300 | 700*700 | 45KW*8 | 18-25 |
| 18 | HL-1500Y-B | 4000*3000*1300 | 700*700 | 45KW*8 | 25-30 |
| Item | Model | Motor KW | Inlet height mm | Box Dimension(L W H) |
| 1 | HLL-60 | 11KW*1 | 500 | 1150*850*850 |
| 2 | HLL-80 | 15KW*1 | 550 | 1150*850*900 |
| 3 | HLL-120-A | 18.5KW*1 | 550 | 1150*850*900 |
| 4 | HLL-120-A | 18.5KW*1 | 550 | 1300*900*900 |
| 5 | HLL-160 | 18.5KW*1 | 600 | 1600*1100*1000 |
| 6 | HLL-200 | 22KW*1 | 1000 | 2000*1100*1000 |
| 7 | HLL-315 | 37KW*1 | 1000 | 2300*1100*1000 |
| 8 | HLL-400 | 45KW*1 | 1300 | 2300*1100*1000 |
