China Metal Chips Briquetting Press Shavings Copper Aluminum Alloy

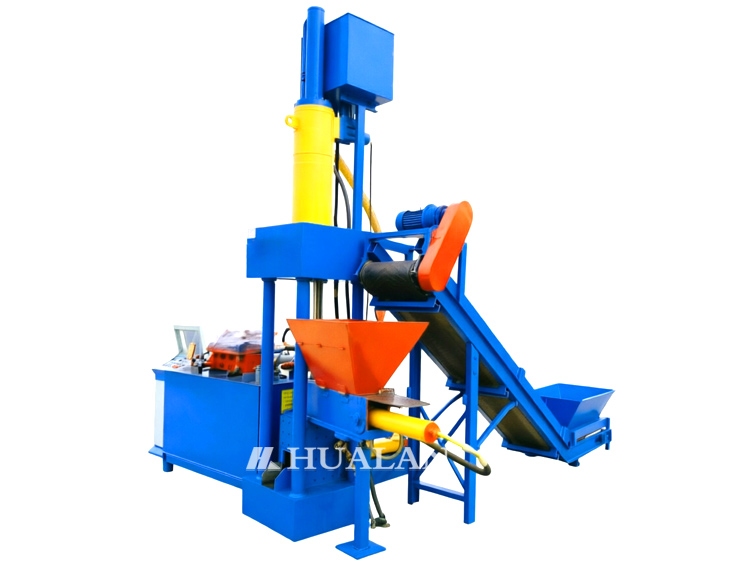

what is a Metal Chips Briquetting Machine

China hualan Metal Briquetting Machine (also commonly known as a Metal Chip Briquetting Press or Metal Baling Machine) is a specialized piece of equipment designed to compress metal scraps into briquettes. By utilizing a powerful hydraulic system, it transforms loose metal waste into high-density “metal briquettes,” making them much easier to transport, store, and recycle for smelting.

Video of Metal Chips Briquetting Machine

Apply of metal chips briquetting machine

This equipment is capable of directly cold-pressing powdery or granular materials—such as cast iron chips, steel chips, copper chips, aluminum chips, sponge iron, iron ore powder, slag powder, and other non-ferrous metal chips—into cylindrical briquettes weighing approximately 2.5 to 10 kg.

The entire production process requires no heating, additives, or other treatments. It achieves direct cold-pressing, ensuring that the original material properties remain unchanged during the forming process.

For instance, after forming, the density of cast iron chips can reach 5–6 T/m³. They can be directly charged into the furnace, serving as a substitute for pig iron or other metals. This is especially valuable for recycling castings made of special materials.

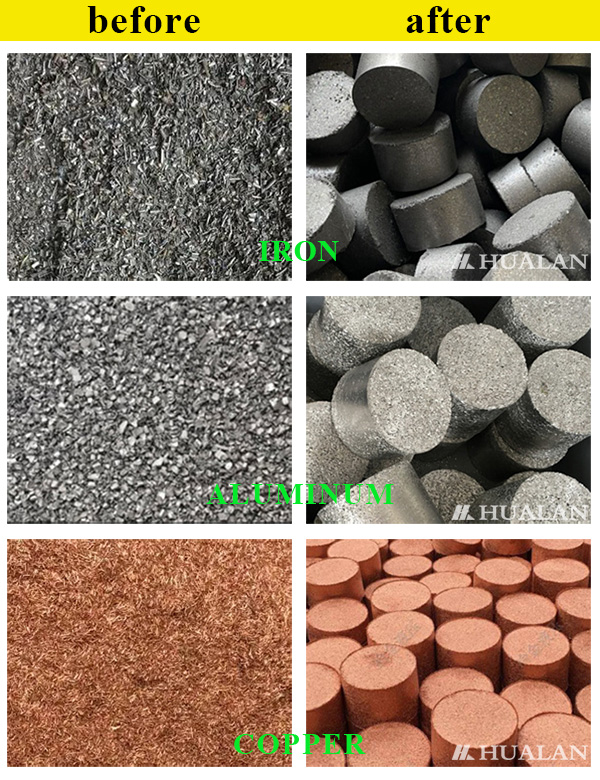

Press before and after

Features of Metal Chips Briquetting Machine

The system is equipped with a pre-pressure relief device, which completely eliminates hydraulic shock.
An advanced rapid-action mechanism ensures that the user’s production demands are fully met.
The electrical section adopts an imported PLC fully automatic control system, featuring strong anti-interference capability and a low failure rate.
The main body utilizes an integral steel structure, offering high strength and excellent stability, requiring no anchor bolts for installation.
The frame adopts an integral cast steel component. The entire machine boasts a high degree of automation and is simple to operate.
The cylinders use a tandem design, which increases movement speed and production efficiency.
Based on user conditions, optional equipment such as a spiral automatic feeder and a chain plate conveyor can be added to reduce the labor intensity of workers.

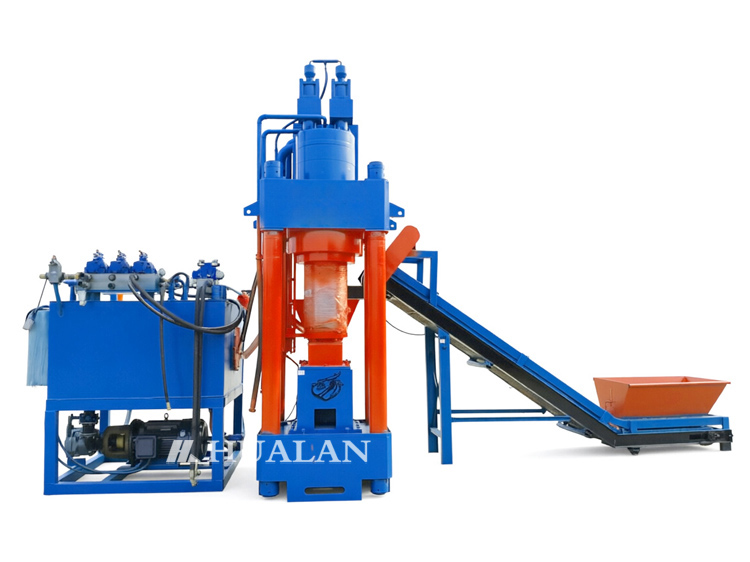

Main Structural Components of Metal Chips Briquetting Machine

Main Frame:

Four-column structure, providing support and guidance to ensure stability during pressing.
Hydraulic Station:

The cabinet section containing the oil pump, motor, and oil tank to provide power.
Main Cylinder :

Responsible for executing the pressing action and generating pressure.
Conveying Device:

Used for automatic feeding to reduce manual handling.
Control System:

Used for setting parameters and controlling the automation process.

Parameter Of Metal Chips Briquetting Machine

Parameter Of Metal Chips Briquetting Machine
