Type : Vertical type
Condition：New
Origin：China, Shandong
Type： Small type and heavy duty type
10-30ton small ; 40-80 ton middle; 100-160 ton large; 200-300 ton heavy
Used in：Waste cardboard boxes, plastic film, woven bags, cotton, straw, hard plastics, lightweight metals (such as aluminum cans), thick-walled pipes, lightweight metal shavings, waste aluminum profiles, copper shavings, scrap steel, etc.
China huala vertical baler is an industrial machine that operates on the principle of vertical compression.Unlike horizontal waste baler,vertical baler compress downward. offer a compact solution for high-density baling in limited spaces.
Vertical baler workflow:
1.Feeding:
Materials are loaded into the top hopper manually or via a conveyor belt.
2.Compression:
The hydraulic system drives the ram downward to apply strong pressure to the material.
3.Strapping:
Once compression is complete, the operator manually threads a strap through the designated openings to secure the bale (some high-end models support automatic strapping).
4.Discharge:
The hopper door is opened, and the finished bale is pushed out using a hydraulic pusher or manually.
Vertical balers range from 10 tons for small workshops to over 300 tons for heavy-duty metal recycling.
1.Small vertical baler: 10-30 ton
Application : Supermarket, convenience store, small garment factorie, family farm
Plastic baler, woven bags, cotton, and straw baler
2.Middle type:40-80 ton
bale density: Medium-sized scrap collection center, logistics center, printing factory
Mixed waste paper baler, hard plastics, and lightweight metals (such as aluminum cans)
3.Large type:100-160 ton
Application : Large-scale recycling company, raw material department of paper factory
Cardboard baler (high-density preferred), thick-walled pipes, and lightweight metal shavings
4.Heavy duty vertical baler:180-300 ton
Application :Metal smelter, specialized metal shredding and recycling center
Waste aluminum baler , copper shavings, scrap steel, and non-compressible industrial waste
Hualan heavy duty baler between standard vertical and horizontal baler, specifically designed for handling difficult-to-compress materials or achieving high-density bales in space-constrained environments.
Key features of heavy duty type vertical baler
4.1Extreme Compression Force
Heavy-duty vertical presses typically have a tonnage capacity ranging from 160 to 300 tons, or even higher.
Their powerful compression force can easily crush high-strength materials such as aluminum cans and thick-walled plastic pipes.
4.2Reinforced Machine Frame
Constructed with thickened steel plates and reinforced ribs, the main hydraulic cylinder is typically made of heavy-duty cast steel to withstand the immense reaction forces generated by high tonnage, preventing frame deformation or cracking.
4.3High-Density Bales
Due to the high pressure, the density of the bales produced is significantly higher than that of standard vertical balers, approaching the level of small horizontal balers.
4.4Automation Upgrades
Many heavy-duty vertical models are equipped with automatic threading/strapping systems and automatic bale ejection pushers, reducing the risks associated with manual operation and improving operational efficiency.
If you have limited space, a tight budget, and low processing volumes, choose a vertical model;
if you’re looking for high efficiency, high density, and high daily processing volumes, choose a horizontal model.
| Name | Vertical Baler | Horizontal Baler |
| Footprint | Very small (vertical design, extremely space-efficient) | Large (requires ample space for material feeding and bale discharge) |
| Daily Capacity | < 30 ton (suitable for small to medium-scale operations) | > 30 tons (suitable for medium- to large-scale continuous operations) |
| Bale Density | Medium (limited by gravity, moderate density) | Very high (horizontal compression, high density, more cost-effective transportation) |
| Auto level | Low/semi-automatic (typically requires manual rope tying) | High/Fully automatic (automatic feeding, strapping, and bale discharge) |
| Labor Costs | High (requires manual feeding and operation) | Low (typically requires only one person for monitoring, or can even be unmanned) |
| Equipment Price | Low (low initial investment cost) | High (higher initial investment costs) |
| Application | Supermarket, small recycling centers, garment factories, farms | Large-scale waste paper baling stations, steel factories, smelting plants |

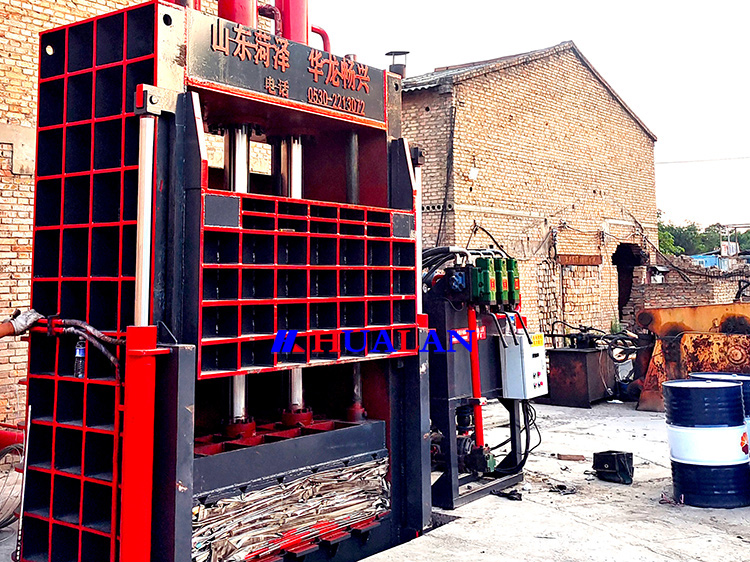

China Vertical garbage Baler Ready load
Space-saving:
The vertical design occupies a significantly smaller footprint than horizontal models, making it ideal for workshops or recycling centers with limited floor space.
Low Investment Threshold:
Featuring a simple structure with cost-effective manufacturing and maintenance, this equipment is perfectly suited for small and medium-sized enterprises entering the market.
Flexible Operation:
Highly adaptable to various materials, the machine allows for processing adjustments—such as modifying pressure—to handle everything from waste paper and plastic bottles to straw.
Uniform Bales:
The resulting bales are consistently rectangular and uniform, ensuring they are easy to stack, store, and transport efficiently.
Vertical Baler
| Item | Model | Motor KW | Inlet height mm | Box Dimension(L W H) |
| 1 | HLL-60 | 11KW*1 | 500 | 1150*850*850 |
| 2 | HLL-80 | 15KW*1 | 550 | 1150*850*900 |
| 3 | HLL-120-A | 18.5KW*1 | 550 | 1150*850*900 |
| 4 | HLL-120-A | 18.5KW*1 | 550 | 1300*900*900 |
| 5 | HLL-160 | 18.5KW*1 | 600 | 1600*1100*1000 |
| 6 | HLL-200 | 22KW*1 | 1000 | 2000*1100*1000 |
| 7 | HLL-315 | 37KW*1 | 1000 | 2300*1100*1000 |
| 8 | HLL-400 | 45KW*1 | 1300 | 2300*1100*1000 |
Vertical Baler
| Item | Model | Motor KW | Inlet height mm | Box Dimension(L W H) |
| 1 | HLL-60 | 11KW*1 | 500 | 1150*850*850 |
| 2 | HLL-80 | 15KW*1 | 550 | 1150*850*900 |
| 3 | HLL-120-A | 18.5KW*1 | 550 | 1150*850*900 |
| 4 | HLL-120-A | 18.5KW*1 | 550 | 1300*900*900 |
| 5 | HLL-160 | 18.5KW*1 | 600 | 1600*1100*1000 |
| 6 | HLL-200 | 22KW*1 | 1000 | 2000*1100*1000 |
| 7 | HLL-315 | 37KW*1 | 1000 | 2300*1100*1000 |
| 8 | HLL-400 | 45KW*1 | 1300 | 2300*1100*1000 |
