Coco Peat Sawdust briquette Coir wood chips briquetting machine China
Capacity: 300 – 1200 kg/h per set
Bale / cake size: Diameter 90 -120mm ,Length 5 -300mm
Material: wood chips, sawdust, shavings, bark, and furniture factory scraps and other materials
Origin: China
What is a wood chips briquetting machine
Hualan wood chip briquetting machine is a specialized device that compresses loose biomass waste, such as wood chips and sawdust, into high-density blocks or briquettes under high pressure.

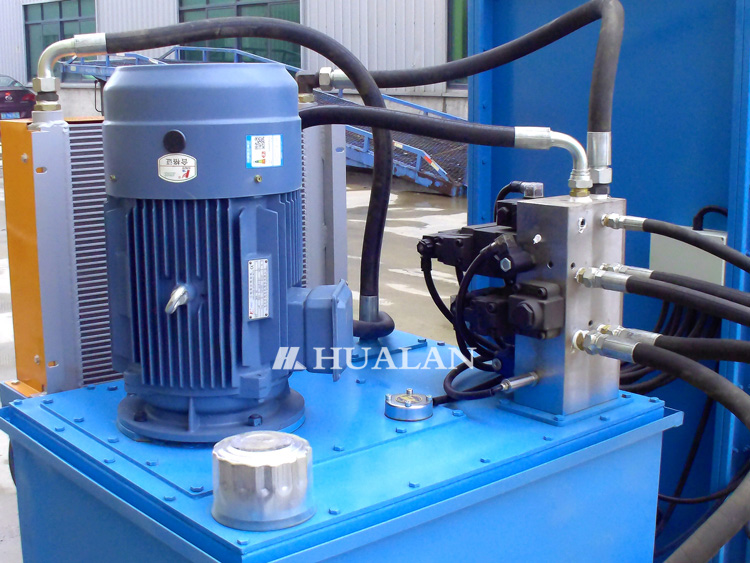

hydraulic workflow
The hydraulic workflow of a wood chip briquetting machine begins with the motor driving the hydraulic pump to build system pressure while material is fed into the compression chamber. Subsequently, the control system activates the directional valve, directing high-pressure oil into the main cylinder to drive the piston and compress the material into shape. Once the preset pressure is reached, the system releases pressure and retracts the piston, while a discharge mechanism simultaneously pushes the formed briquette out of the mold, completing an automated cycle.
Main components of the equipment:
main frame, main hopper, intelligent fully automatic electrical control system, hydraulic system, forming die, and conveying device.

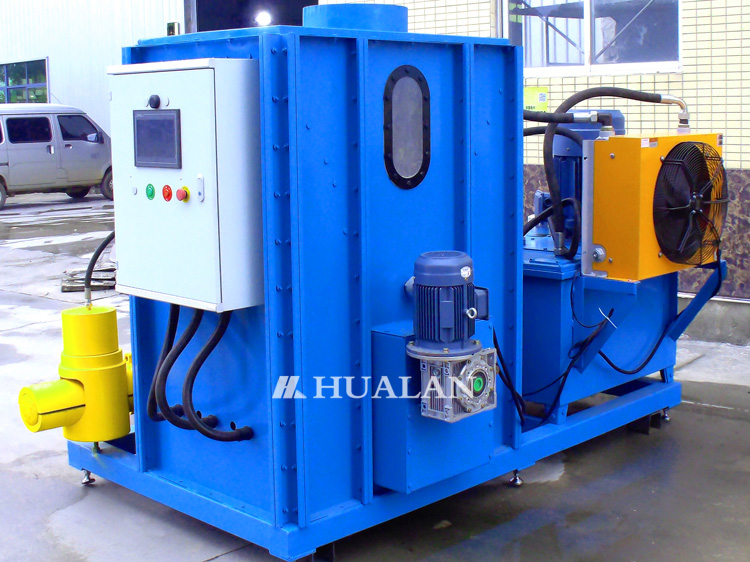

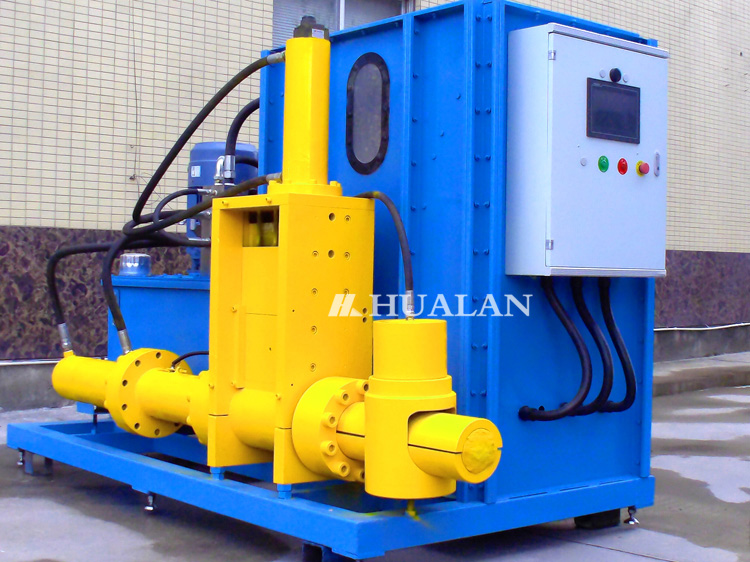

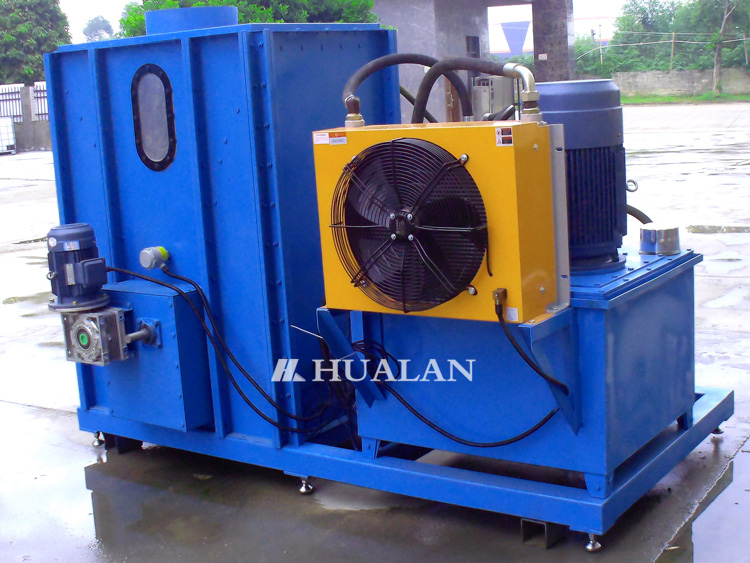

Wood chips briquetting machine

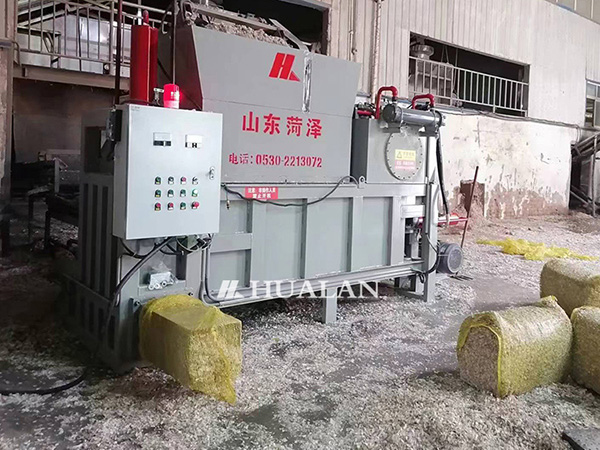

If you need big baler, suggest wood chips bagging baler
wood chips bagging baler
Video of a Wood chips briquetting machine
Features of wood chips briquetting machine
- Compact size and lightweight design.
- High rigidity, high precision, and fast response.
- High force from variable displacement drive, direct drive, and low energy consumption.
- Wide speed regulation range and diverse speed control modes.
- Self-lubricating, self-cooling, and long service life.
- Easy to implement safety protection.
How does wood chips briquetting machine prevent dust?
The briquetting machine eliminates the traditional small bag filter fan for dust collection. Instead, it uses a vacuum cleaner to directly extract and return excess sawdust to a central vacuum system, preventing secondary dust and eliminating manual intervention for sawdust removal. The connection between the vacuum cleaner and the briquetting machine employs a hard, seamless docking to prevent sawdust scattering during transportation.
Wood chips briquetting machine parameter:
| Model | HL400 | HL600 | HL1000 |
| Capacity（Kg/h） | 300-600 | 400-800 | 600-1200 |
| Power (kw) | 22.4 | 28、4 | 41.9 |
| Cake Diameter(mm) | ￠100 | ￠120 | ￠120 |
| Weight(ton) | 2.6 | 3 | 3.3 |
| Dimension(m) | 2.6*2*2.5 | 3*2.2*2.5 | 3*2.2*2.5 |
