Condition：New
Origin：China
Capacity：50-1500 kg/h
Wire / Cable diameter: ≤ 30mm
Used for：Separating & recycling copper, aluminum, plastic from copper-plastic wire, aluminum-plastic wire, communication cables, automobile wire, motorcycle wire, electric vehicle wire, household appliance wire, cable wire, difficult capillary wire, etc.
What is a Scrap Copper wire cable Granulator recycling machine?
Copper wire cable recycling machine , This refers to equipment that processes scrap electrical wires by cutting them into granules, then using high-precision air-jet separators to separate copper from plastic. Simply put, it involves breaking down scrap wires through crushing and other processes into granular material, followed by sorting and separating materials like copper and plastic using equipment such as dust collectors, air-jet separators, and electrostatic separators.
Working video of Scrap Copper wire cable Granulator recycling machine?
The system including Crusher, conveyor, airflow separation bed, fan, dust removal box, etc
What is the working principle of Scrap Copper wire cable Granulator recycling machine?

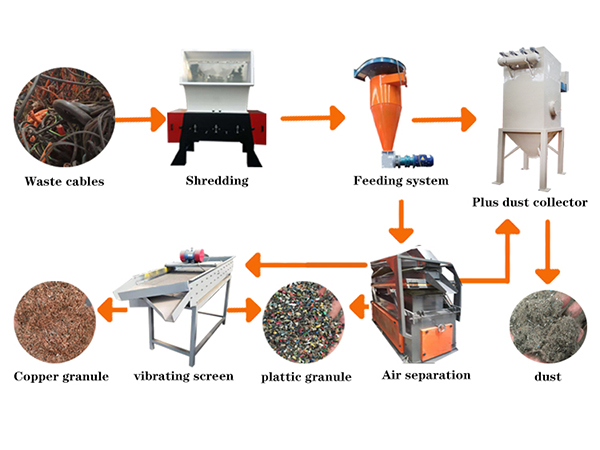

Crush the material into particles, strip the plastic and copper, and the crushed material enters a high-precision airflow sorting machine through a wind conveying system for sorting, obtaining plastic and copper. Unclean plastic is then sent to the electrostatic sorting machine for secondary sorting to ensure the reuse rate of copper. Simultaneously equipped with dust removal equipment, it can effectively control dust overflow, with a dust removal efficiency of up to 99%, ensuring no dust pollution during the production process.
What is the Fetures of Scrap Copper wire cable Granulator recycling machine?
The crusher, sorting equipment, and dust collection system are integrated into a modular platform design, facilitating easy relocation and transportation while enhancing operational flexibility.
The crusher rotor employs an alternating blade shaft configuration, delivering higher production efficiency, lower noise levels, and more stable operation.
The air-flow sorting equipment achieves high separation efficiency. Its recirculation system enables secondary crushing of semi-finished products, ensuring thorough separation of metals and non-metals.
The baghouse dust collector effectively controls dust overflow and delivers excellent dust removal efficiency.
| Model | Power(kw) | Weight (kg) | Capacity (kg/h) | Dimension (m) |
| HL400 | 34 | 3200 | 300-400 | 4*2.1*2.5 |
| HL600 | 45 | 3850 | 400-500 | 6.2*5*3.3 |
| HL800 | 75 | 5500 | 700-800 | 10.4*2.1*3.3 |
| HL1000 | 95 | 8200 | 800-1000 | 12*4.1*4.5 |
