what is a Car Shell Press Machine?

China Hualan Car Shell Press Machine is primarily designed to compress and bale scrap car bodies, chassis frames, and light-gauge materials. By harnessing immense hydraulic force, the machine transforms loose shells into high-density rectangular bales, which drastically cuts down transportation costs and boosts efficiency in steelmaking furnaces.

Working principle of Car Shell Press Machine?

Operators place scrap car shells onto the press plate and activate the machine. Subsequently, the hydraulic system drives the cylinder to push the press plate smoothly down along the guide rails, uniformly compressing the shell into a preset shape. Upon completion, the plate automatically resets, ready for the next cycle.

1. Feeding
   Load scrap car shells into the compression chamber.
2. Compression
   The hydraulic station drives the main cylinder to push the ram downward. Guided by the four-column rails, the ram exerts high vertical pressure on the material.
3. Pressure Holding & Forming
   Once the preset pressure is reached, the system maintains pressure for a moment. This allows the material to undergo plastic deformation and take its final shape.
4. Discharging
   After compression is complete, the ram retracts. The finished bale can then be removed using a forklift or similar equipment.

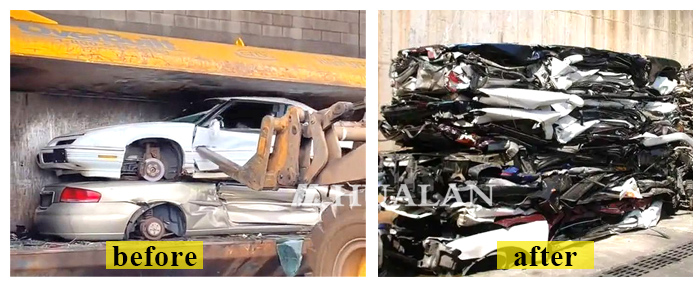

Car Shell press machine before and after

Structural Design & Key Features

1. Four-Column Guidance
   Guided by high-strength columns to prevent ram deflection. This design protects the cylinder seals and significantly extends the equipment’s service life.
2. Robust Structure
   The coordinated design of the press plate, support frame, and guide rails ensures the car shell remains fixed, guaranteeing safe and stable operation.
3. Intelligent Electronic Control
   The electrical control system enables precise functions including start, stop, and speed adjustment.
4. Powerful Hydraulics
   A high-performance hydraulic system delivers stable high pressure, easily flattening tough components like chassis frames.
5. Automated Efficiency
   PLC control automates feeding, compression, and bale ejection. It’s simple to operate and saves on labor costs.

Advantages of Car Shell Press Machine?

1.Short cycle time and high efficiency
2.Hydraulically driven moving parts ensure smooth operation
3.Designed for safety and ease of use, this machine features a user-friendly interface and can be operated via remote control.

Parameter of Car shell press machine

Parameter of Car shell press machine
