Orginal : China , shandong
Feeding size : 3-100mm
Capacity : ≤ 1 - 15 CBM per hour per set
Application: Sorting of materials such as industrial waste, electronic waste, broken glass, aluminum-plastic doors and windows, waste plastics, furnace slag, crushed automotive parts, crushed household appliances, crushed toys, and ores.
Eddy current separators, as equipment specifically designed for solid waste sorting, can efficiently extract non-ferrous metals such as scrap copper, aluminum, and zinc from municipal solid waste or industrial residues.
Eddy current separator 3D video
Application:
Its applications are extensive, including the effective sorting of materials such as industrial waste, electronic waste, broken glass, aluminum-plastic doors and windows, waste plastics, furnace slag, crushed automotive parts, crushed household appliances, crushed toys, and ores.
Working principle:
During the operation of eddy current separation technology, a high-frequency alternating magnetic field is generated on the surface of the separation magnetic roller. When conductive non-ferrous metals such as copper and aluminum pass through this magnetic field, electromagnetic induction causes eddy currents to form within these metals. These eddy currents generate a magnetic field opposite to the original field's direction. Consequently, the non-ferrous metals experience repulsive force from the magnetic field, propelling them forward along their conveying path. This separation from non-metallic materials achieves the sorting objective.

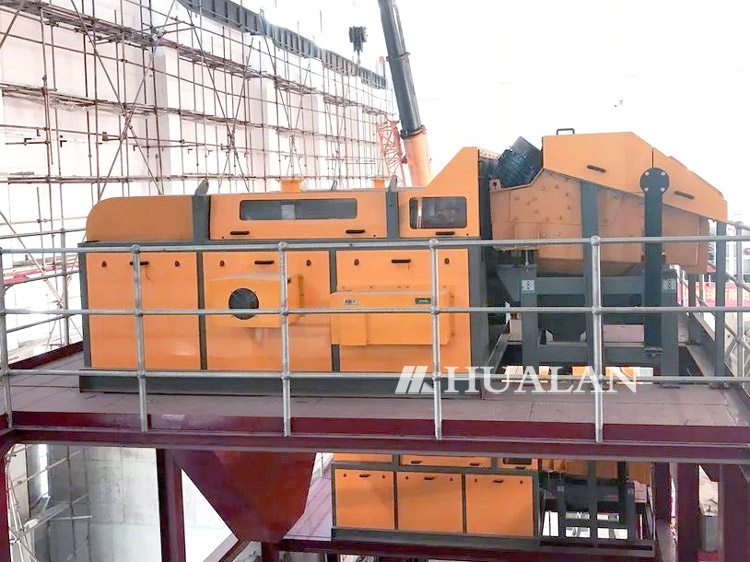

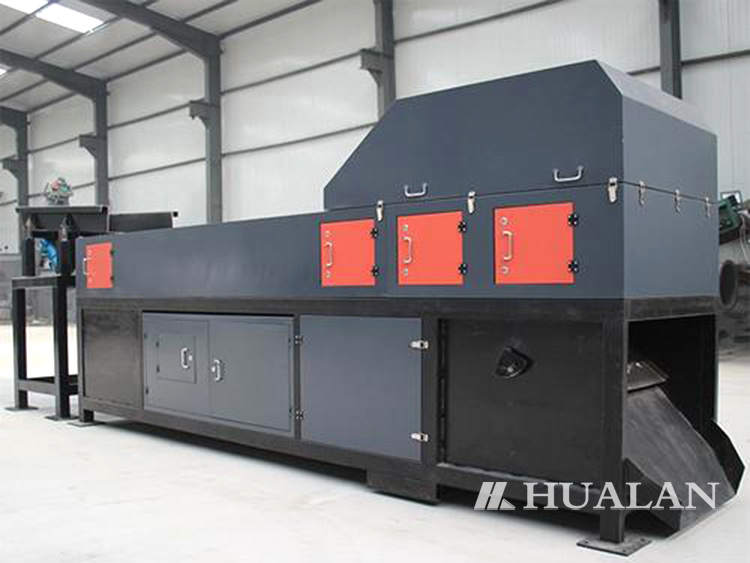

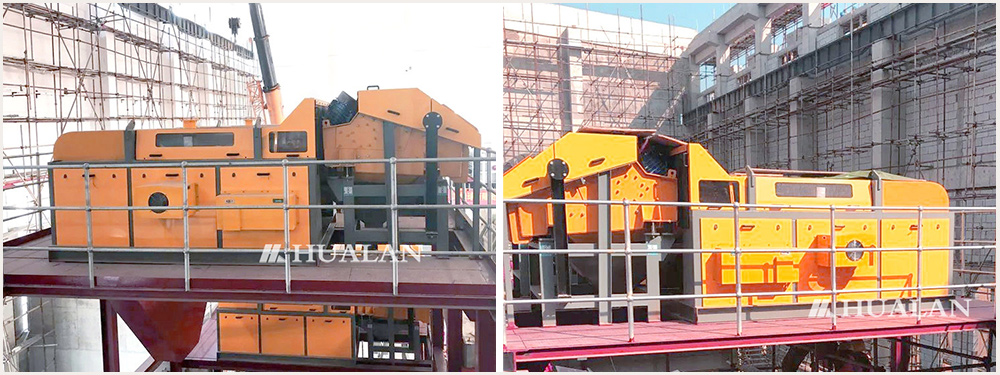

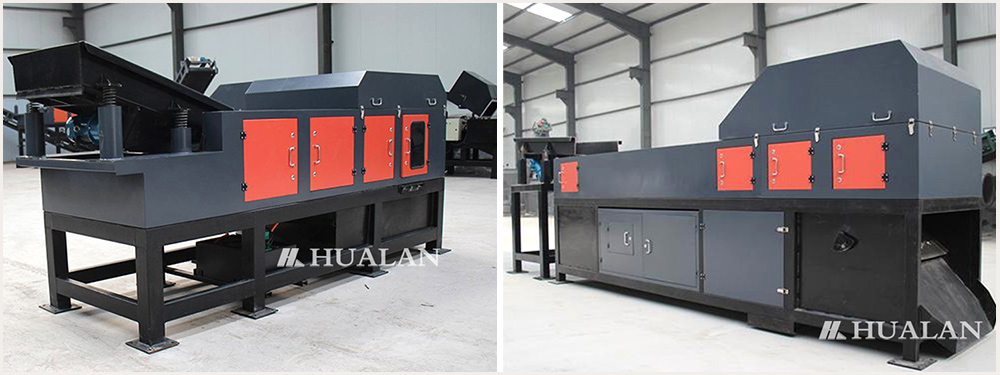

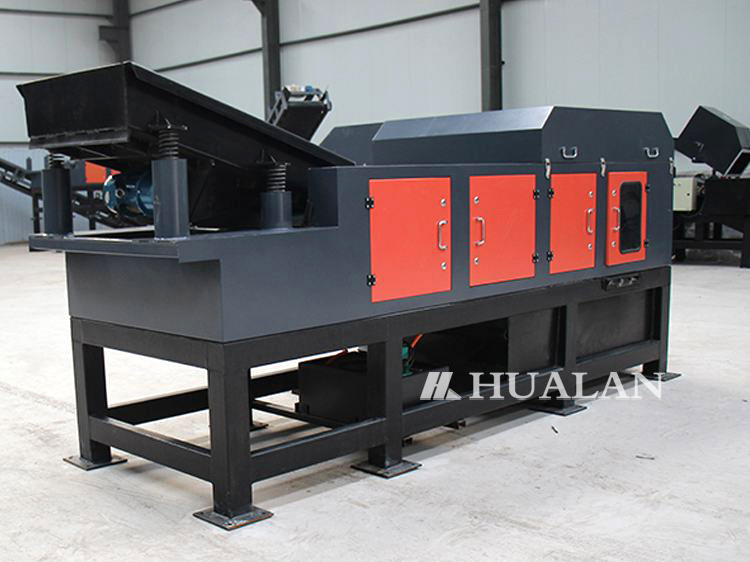

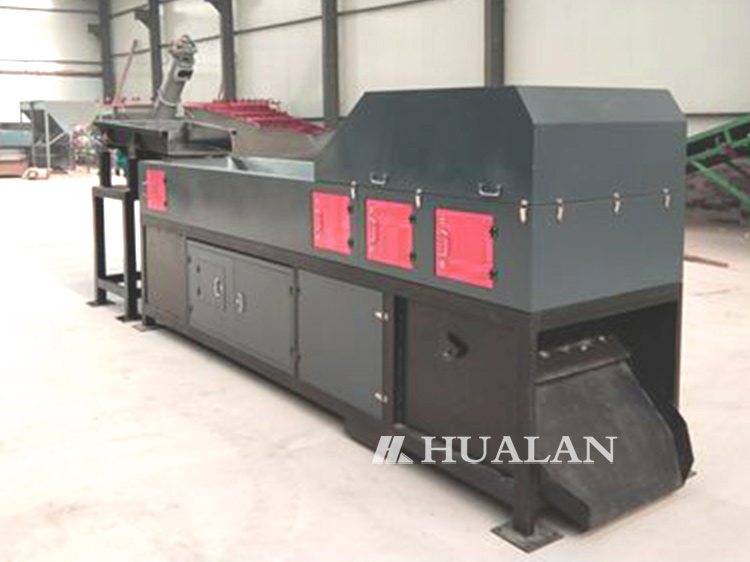

China Eddy current separator for sale
China Eddy current separator for sale
Features
1.Equipment Features and Advantages
2.Simple operation enables automatic separation of metals and non-metals; single-power-supply design ensures a compact and reliable system.
3.Wide range of metal particles can be sorted, typically from 3mm to 100mm.
4.Flexible installation allows customization to client requirements, seamlessly integrating into new or existing production lines.
5.Features powerful eddy currents and utilizes unique magnetic application technology to deliver higher sorting efficiency than traditional products.
| Model | Spindle motor(kw) | Conveyor belt(kw) | Vibrating power(kw) | Capacity(m3/h) | Dimension(mm) | Weight(kg) |
| HL450 | 3 | 0.75 | 120 | 1-3 | 3300*1270*1500 | 980 |
| HL550 | 3 | 0.75 | 120 | 3-5 | 3300*1370*1500 | 1125 |
| HL650 | 3 | 0.75 | 120 | 4-7 | 3300*1470*1500 | 1295 |
| HL800 | 4 | 0.75 | 120 | 5-9 | 3300*1590*1500 | 1490 |
| HL1000 | 5.5 | 0.75 | 250 | 6-11 | 3300*1795*1500 | 1735 |
| HL1200 | 5.5 | 1.5 | 250 | 8-13 | 3300*1995*1500 | 1985 |
| HL1500 | 7.5 | 1.5 | 370*2 | 10-15 | 4100*2305*1500 | 2245 |
| Model | Spindle motor(kw) | Conveyor belt(kw) | Vibrating power(kw) | Capacity(m3/h) | Dimension(mm) | Weight(kg) |
| HL450 | 3 | 0.75 | 120 | 1-3 | 3300*1270*1500 | 980 |
| HL550 | 3 | 0.75 | 120 | 3-5 | 3300*1370*1500 | 1125 |
| HL650 | 3 | 0.75 | 120 | 4-7 | 3300*1470*1500 | 1295 |
| HL800 | 4 | 0.75 | 120 | 5-9 | 3300*1590*1500 | 1490 |
| HL1000 | 5.5 | 0.75 | 250 | 6-11 | 3300*1795*1500 | 1735 |
| HL1200 | 5.5 | 1.5 | 250 | 8-13 | 3300*1995*1500 | 1985 |
| HL1500 | 7.5 | 1.5 | 370*2 | 10-15 | 4100*2305*1500 | 2245 |
